Product Description:

This machine adopts lead edge feeder with suction vacuum design, it can do slotting, corner cutting, slitting, and creasing all in one go. Its main drive motor is a variable frequency motor, which runs smoothly and saves energy. Moreover, the left-right baffle is adjusted by electricity, and the front baffle is adjusted by hand in synchronization. It is also equipped with a slotting unit, which has a planetary gear structure; its phase can be adjusted in 360 degrees, both while running and stopping, with a spray lubrication design for a longer service life of gear transmission. Furthermore, the machine uses a no clearance adjustment design for its gear transmission, which allows it to improve the paper feeding accuracy. Additionally, it also comes with a photoelectric counter, and can be provided with an optional hole punching unit, depending on the customer's requirements. This includes the carton air hole, carton handling hole, and carton bottom hole punching.

Applications:

GR Corrugated Rotary Slotter Machine is an ideal automatic equipment for producing corrugated cardboard boxes. It is widely used in the packaging industry to produce all kinds of cardboard cartons. GR Corrugated Slotter Machine is certified by CE and ISO, and originates from Hebei Province, China. It is available in three models: 2000, 2500 and 3000. The maximum slotting depth is 350/530mm and the maximum sheet size is 2000/2500/3000mm. The maximum creasing speed is 150m/min. The control system is electric. The minimum order quantity is 1 set and the price is negotiable. Packaging is available in plastic and wood, and delivery time is within 30 days. The payment terms are T/T. GR Corrugated Slotter Machine has a supply ability of 20 sets/month.

Customization:

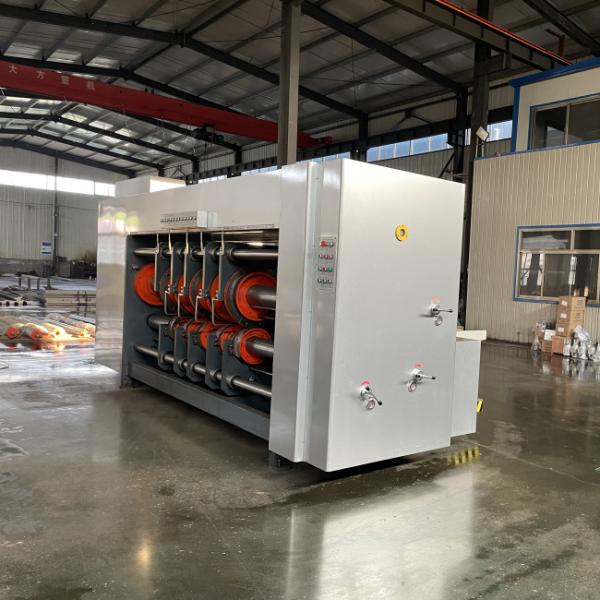

Corrugated Rotary Slotter Machine

We offer a range of Rotary Corrugated Slotter and Rotary Corrugated Slotting Device with different models 2000, 2500 and 3000. Our Corrugated Rotary Slotter Machine is CE and ISO certified and manufactured in Hebei Province, China.

• Brand Name: GR
• Model Number: 2000/2500/3000
• Place of Origin: Hebei Province, China
• Certification: CE, ISO
• Minimum Order Quantity: 1 set
• Price: To be negotiated
• Packaging Details: Plastic, wood
• Delivery Time: 30 days
• Payment Terms: T/T
• Supply Ability: 20 sets/month
• Control System: Electric
• Name: Corrugated Slotter Machine
• Max. Slotting Depth: 350/530mm
• Min. Sheet Size: 400mm X 600mm
• Max. Sheet Size: 2000/2500/3000mm

Support and Services:

We provide technical support and services for Corrugated Rotary Slotter Machine. Our technical support and services include:

• Troubleshooting guide for any problem encountered during installation, operation and maintenance
• Provide spare parts and consumables
• Train operators and maintenance personnel
• Periodic maintenance and repair service
• On-site emergency service

Packing and Shipping:

Packaging and Shipping for Corrugated Rotary Slotter Machine:

• The Corrugated Rotary Slotter Machine will be packaged in a wooden crate with foam-lined interior.
• The crate will be shrink-wrapped to ensure safe transit.
• The package will include a detailed installation and operation manual.
• The Corrugated Rotary Slotter Machine will be shipped via ground freight.

FAQ:

Q: What is the brand name of this Corrugated Rotary Slotter Machine?

A: The brand name is GR.

Q: What are the model numbers of this machine?

A: The model numbers of this machine are 2000/2500/3000.

Q: Where is this Corrugated Rotary Slotter Machine made?

A: This Corrugated Rotary Slotter Machine is made in Hebei Province,China.

Q: What certifications does this Corrugated Rotary Slotter Machine have?

A: This Corrugated Rotary Slotter Machine has CE and ISO certifications.

Q: What is the minimum order quantity for this machine?

A: The minimum order quantity for this machine is 1 set.
