High Speed Automatic Corrugated Board Cardboard Flute Laminating
Machine 1600mm
Product Detail:
1. The vacuum suction-type feeding system can lead the paper
accurately into the machine;cycle stacking planes in a state of
non-stop the next batch of paper stack well, so that more
efficient.
2. Using suction automatic feeding of bottom sheet, according to
the main machine operating speed, continuous automatic tracking.
3. The machine operation is stable, surface paper with corrugated
paper joint very accurate. The corrugated paper never pull ahead,
surface paper's location is easy adjust.
4. Machine uses touch-screen/PLC/servo motor control system, double
frequency control type , the circuit system is stable, and can
automatically display the failure alarm.
5. Automatic gluing, and the glue can be used circulatory, avoid
glue waste.
6. Measure roller line-speed design scientifically, avoid glue fly
out when the speed is high.
7. Pressure rollers adopt unilateral adjustment, convenient and
fast.
8. Cleaning type : bottom roller is extruded by rubber roller to
clean the bottom laminating pressure roller, ensure the cleaner on
the reverse of the bottom paper . Make glue etc. foreign matter
after washing direct subside in tank. At the same time , adopting
the gear and chain to control the lifting of tank, can take out the
tank easily and convenient to wash .
9. The pressure conveyor adopt floating movable structure , total
length 5m , equipped with 28 paper pressing rollers , make the
cardboard uniform bearing strength in pressing process.
10. Counter designs scientifically, easy recording the amount you
have been worked.
11. Small pressure table (optional) . length 2.5m , big pressure
table length 5m.
12. Face paper for the human design of artificial positive
propulsion, so that the paper is easier to feed, add the bottom
paper is convenient, more efficient.
Unit Introduction:
1.Feeder System
High precision high speed feeder , make the feeding smooth .
Strengthen type feeder device , the suction mouth angle can be
adjustable , according to different kinds of surface paper .
2.Electric system
Main electric appliances all adopt the imported famous brand .
PLC tracking technique , automatic fault detection .
3.Pressure adjustment system
Adjust the pressure in single side , to ensure the pressure is same
on both sides .
With pressure gauge display , can easily adjust when change the
paper size.
4.Pressure conveyor
Floating type pressure design , don’t need to adjust the pressure
of flatbed .
Heightening design , good for the smooth work of thick corrugated
cardboard .
Technical Parameter:
| Product Name | High Speed Full Automatic Flute Laminating Machine |
| Category | Flute Laminating Machine |
| Model | 1300mm,1400mm,1600mm |
| Max Laminating Size | 1300x1250mm,1400x1250mm,1600x1250mm |
| Min Laminating Size | 400X400mm |
| Economic Speed | 0~100sheets/min |
| Laminating Precision | ±1.5mm |
| Power | 10kw, 12kw |
| Overall Dimension | 13.5m×2m×2.4m |
| Weight | 48tons, 5.0tons, 5.4tons |
Bottom paper thickness | A/B/C/E flute, 3/4/5 layer , less than 12mm thickness |
| Surface Paper Thickness | 150-600g/㎡ |
| Price | FOB Tianjin |
Our company

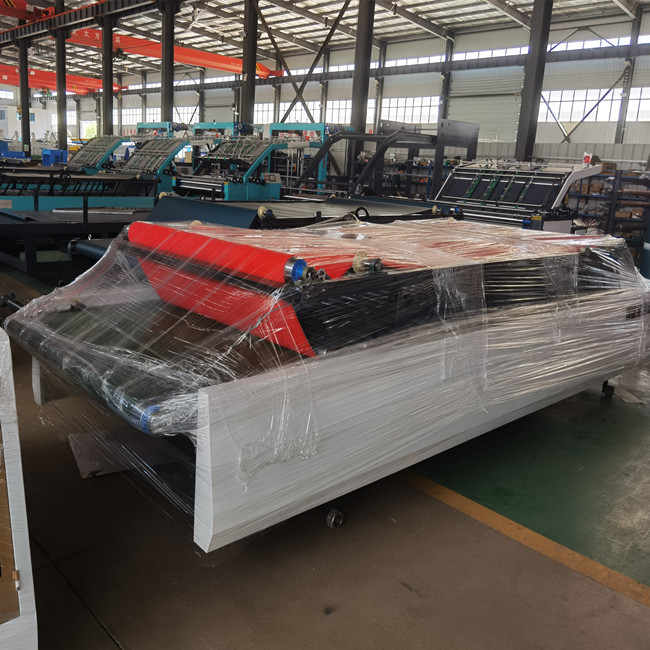

Product packaging
FAQ:
Q1: How is the warranty of the machine?
A: Warranty period: 12 months from the shipping date of machine.
Warranty will be not valid if machine subject to misuse or
accidental damage or operator's error. During the valid time, we
will supply spare parts. If you have any other questions, Kindly
contact us and we will reply you through product's photos and
videos to make every detail clear.
Q2: How about the after-sale service?
A: 1) TM online 24 hours, also contact by email, skype, wechat,
whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
Q3: Is it safe on the payment for me as we are the first
cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee
your products receiving, we also accept other safe payment way as
you want.
Q4: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery
equipment, it is difficult to send you samples, if you have any
questions about the products, please feel free to contact us for
more detail, we are glad to provide you more information such as
specifications, video, etc.
