    Gerun 1400 Type 1400mm Four Layer Corrugated Cardboard Production Line

    Ask Lasest Price
    Brand Name : GR
    Model Number : 100-1400-Ⅰ
    Certification : CE,ISO
    Price : To be negotiated
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2 sets/month
    Delivery Time : 50-80 days
    • Product Details
    • Company Profile

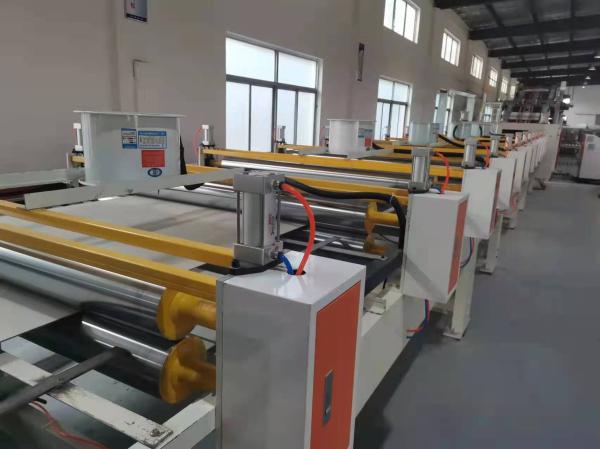

    Gerun 1400 Type 1400mm Four Layer Corrugated Cardboard Production Line

    Gerun 100-1400 Type Four Layer Hard Board Production Line


    Introduction

    The cardboard composite production line is suitable for transferring 2-3layers of 60-600g/m² roll grayboard paper through hydraulic paper support, overhead bridge transportation, edge alignment, preheating, gluing, bonding, shaping, traction, and separation. Cutting, cross-cutting, and delivery table and other processes are combined into the required thick cardboard of various thicknesses and specifications. The production line has many characteristics such as reasonable design, compact structure, high degree of automation, convenient operation and maintenance, energy saving, etc., which makes up for many shortcomings of single-machine manual pasting, greatly reducing production costs, improving product quality, and flatness to cardboard , Stiffness, surface finish, bonding strength, etc. have been greatly improved, it is an ideal equipment for making cardboard.

    Gerun 1400 Type 1400mm Four Layer Corrugated Cardboard Production Line


    Parameters
    The maximum working width1400 mm
    Operation directionleft or right(Determined in accordance with customer plant)
    Design speed120 m/min
    Working speed40-100 m/min
    Sheet cutting length500~9999 mm
    Sheet thickness2-4 mm
    Precision Cutter

    ±1 mm(Uniform)

    ±1.5 mm(Non-uniform)

    Machine Length50 m
    Output

    3~5 ton/hour


    Packing and Shipping

    1. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road.

    2. Transportation and various types of weather conditions. A full set of maintenance and operation.

    3. Manuals is included.

    3
    Our Services

    1.We provide whole establish new factory solution,give customer a comprehensive design plant idea, consider the target customer market. We own a great team,engineer service to oversea country is available.


    2 We provide loan to below business situation:

    1) Use first.

    2) Payer later.

    3) Special service.

    We can provide financial support for your project.

    Mutual trust is the foundation of our business.


    3 After-Sales Service

    1) Engineers available to service machinery overseas.(including installation,debugging,training etc.

    2) Whole machine main parts guarantee for 1 year.

    3) 25 years experience,reply within 12 hours,provide solve solution within 24 hour.

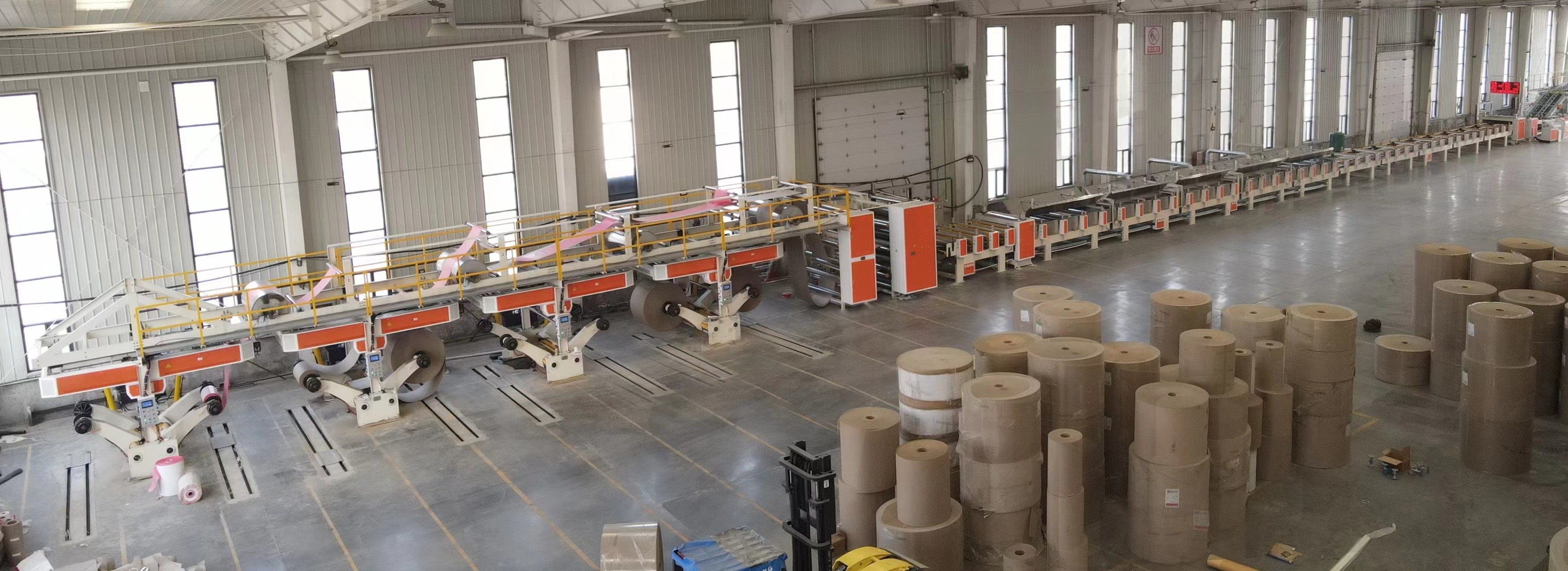

    Gerun 1400 Type 1400mm Four Layer Corrugated Cardboard Production Line
