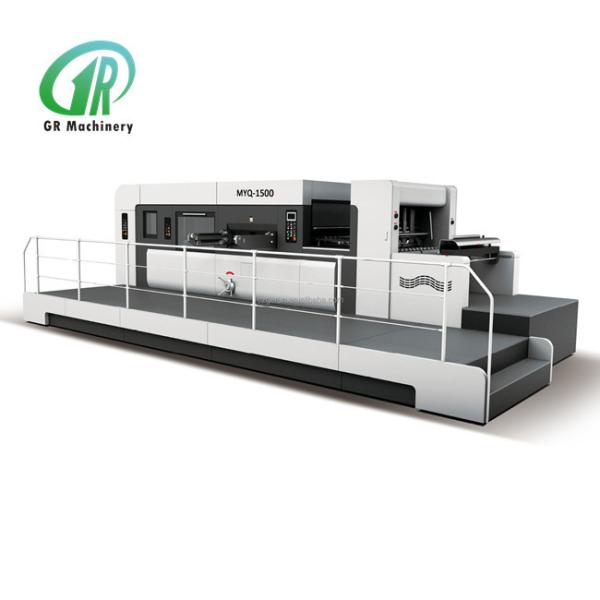

Corrugated Carton Box Die Cutting Creasing Die Cut Machine Making Corrugated

Corrugated Carton Box Die Cutting Creasing Die Cut Machine Making Corrugated indenting and

embossed/depressed cold-pressing of paper boxes, cartons or trademarks of package & decoration industries.

The state-of-the-art structures such as pneumatic clutch and pneumatic locking plate are used for this machine

in addition to automatization for paper feeding, die cutting, paper collection, counting, man-machine interface and

inspection. The production can be lasted continuously, improving the efficiency. This machine features easy / quick

operation, safe, high pressure, high precision and good quality etc.

Features

1. Complete design, accurate installation, high stability, high security, low noise.

2. Adopt worm, worm gear, crankshaft transmission, high cutting pressure, and high durability

3. High precision intermittent mechanism, high cutting precision, runningsteadily.

4. AdoptEuropean feeder, suction adjustable, steadily, precise, good paperapplicability.

5. Non-stop feeding, pre-stacking and collection device can shorten theauxiliary time, improve the efficiency.

6. Automatic pressure adjustment system, pressure digital display.

7. Human-friendly designed die frame and baseplate, makes installation,adjustment convenient.

8. Pneumatic die locking device, die frame fixed more steadily, accurately, timesaving.

9. Front lay, side lay, feeding device fine tuning device, paper positioning moreaccurate.

10. Double sheet, crooked sheet, empty sheet optoelectronic detecting deviceensure the paper in the right position, reduce waste.

11. Electronic control module design, adopt imported electronic components,ensure the accuracy and reliability.

12. Touch screen man-machine interface, real-time monitor the runningsituation,makes machine adjustment, trouble shooting more convenient.

13.Cycling cooling oil supply system ensure the movement parts getadequatelylubricated to ensure the durability.

14. Adopt fixed quantity at fixed timing oil supply system, ensure the movementparts get adequately lubricated to let better durability.

1. Max. paper size 1670m×1200mm

2. Min. paper size 550mm×500mm

3. Max. Die-cutting size 1650mm×1180mm

4. Max. Die-cutting pressure 400N/cm2

5. Max. Die-cutting speed 5500sheets/h

6. Bite paper edge Min.5-8mm

7. Total power(kw) 32kw

8. Voltage 380V,3PH,50/60HZ

9. Gross weight 25 tons

Lead edge feeding unit

The front plate can be adjusted up and down according to different paper thickness.Equipped with high pressure

blower,air volume separate frequency control.New up graded lead edge feeder, more accurate and positive feeding,

greatly increasing the paper adaptability.

Die cutting unit

Crankshaft connecting rod type high precision plane movable die-cutting table.High stability upper platen fixed die-cutting table.High quality precision worm gear and the synchronous belt perfect combination of transmission, smooth and durable.

High torque pneumatic clutch/break.Famous brand multi cam intermittent transmission mechanism, improve machine life.

High quality torque clutch protects INDEX from injury.Bevel pressure trimming device, the overall adjustment pressure range

is ±1.5mm.High quality, imported pre-stretched gripper bar driving chain.Ensure the accuracy of the machine.

Delivery unit

The way of taking up Paper lifting Table with Roller bracket prevents the cardboard surface from being scratched during the paper delivery process. The whole stacking paper or counting belt output is convenient and quick. The adjustable spring chain buffers the driven wheel after tightening, which greatly reduces the inertial impact of the gripper row steering and maintains the equilibrium tension of the chain.

Q1: How is the warranty of the machine?
A: Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, Kindly contact us and we will reply you through product's photos and videos to make every detail clear.
Q2: How about the after-sale service?
A: 1) TM online 24 hours, also contact by email, skype, wechat, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
Q3: Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee your products receiving, we also accept other safe payment way as you want.
Q4: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it is difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.

Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road

transportation and various types of weather conditions. A full set of maintenance and operation

manuals is included.
