Used Corrugated Paper Carton Box Die Cut Cardboard Die Cutting
Machine
Used Corrugated Paper Carton Box Die Cut Cardboard Die Cutting
Machine indenting and embossed/depressed
cold-pressing of paper boxes, cartons or trademarks of package &
decoration industries.
The state-of-the-art structures such as pneumatic clutch and
pneumatic locking plate are used for this machine
in addition to automatization for paper feeding, die cutting, paper
collection, counting, man-machine interface and
inspection. The production can be lasted continuously, improving
the efficiency. This machine features easy / quick
operation, safe, high pressure, high precision and good quality
etc.
Models &Parameters |
SC1300 |
SC1500 |
SC1650 |
Max Paper Size |
1320*980mm |
1510*1120mm |
1670*1200mm |
Min Paper Size | 350*450mm | 450*500mm | 500*550mm |
Max Die Cutting Size | 1300*960mm | 1490*1100mm | 1650*1180mm |
Die Cutting Pressure | 350T | 380T | 400T |
Corrugated Paper | 3-10mm | 3-10mm | 3-10mm |
Max Die Cutting Speed | 5000(pcs/h) | 5000(pcs/h) | 4500(pcs/h) |
Total Power | 24.5KW | 24.5KW | 32KW |
| Stripping 28.5KW | Stripping 28.5KW | Stripping 35KW |
Total Weight | 16.5T | 19.5T | 23T |
| Stripping 18.5T | Stripping 21.5T | Stripping 26T |
Whole Size(mm) | 5900*2365*2346 | 6200*2380*2356 | 7000*2980*2450 |
| Stripping 7080*2365*2346 | Stripping 7400*2365*2346 | Stripping 8500*2365*2346 |
* The whole machine wallboard and platform are all made of
high-strength ductile iron to ensure large die cutting pressure
* Imported PLC control, touch screen adjustment, all adjustments
are adjusted by motor, saving time and effort
* Automatic counting and non-stop paper-out design, with hydraulic
lifting platform feeding system, convenient for non-stop paper
feeding and paper-out
Stripping unit: 1, The quick-setting way of die is adopted; operator can finish the
setting from exterior without entering the machine. 2, Male and female die can be inserted into the machine from
operation side to shorten the setup time and for higher safety. 3, Upper and lower frames make the dies succeed in performance.
Male and female dies can move up-an-down,making stripping more
completely. 4, A plastic film is set between die-cutting section and lower
frame for stopping paper swerve. It can be adjusted by moving
handcrank according to the size on the dies operation direction. |
|

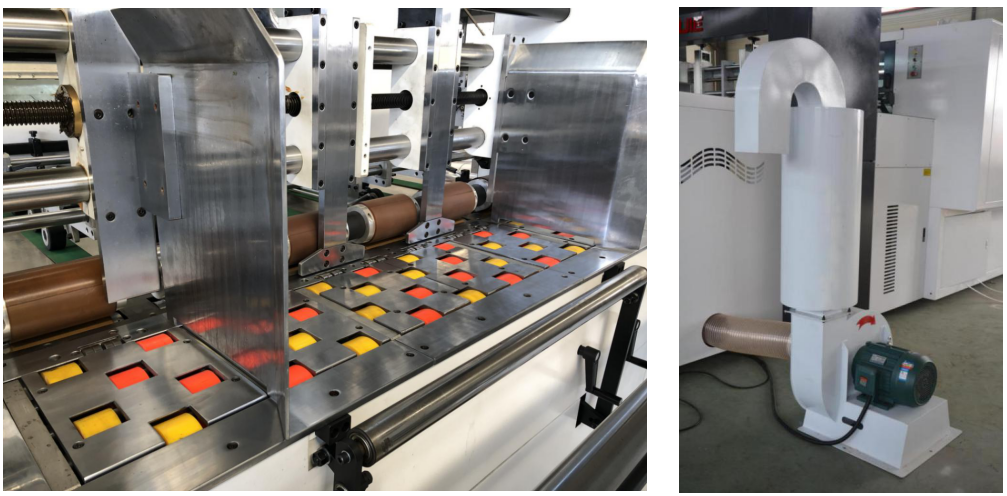

Lead edge feeding unit
The front plate can be adjusted up and down according to different
paper thickness.Equipped with high pressure
blower,air volume separate frequency control.New up graded lead
edge feeder, more accurate and positive feeding,
greatly increasing the paper adaptability.
Die cutting unit
Crankshaft connecting rod type high precision plane movable
die-cutting table.High stability upper platen fixed die-cutting
table.High quality precision worm gear and the synchronous belt
perfect combination of transmission, smooth and durable.
High torque pneumatic clutch/break.Famous brand multi cam
intermittent transmission mechanism, improve machine life.
High quality torque clutch protects INDEX from injury.Bevel
pressure trimming device, the overall adjustment pressure range
is ±1.5mm.High quality, imported pre-stretched gripper bar driving
chain.Ensure the accuracy of the machine.
Delivery unit
The way of taking up Paper lifting Table with Roller bracket
prevents the cardboard surface from being scratched during the
paper delivery process. The whole stacking paper or counting belt
output is convenient and quick. The adjustable spring chain buffers
the driven wheel after tightening, which greatly reduces the
inertial impact of the gripper row steering and maintains the
equilibrium tension of the chain.
1. Q: Are you a factory or trading
company?
A: We are machinery manufacturer which is located in Cangzhou,Hebei
province,China.Cangzhou Shengchuan Machinery Manufacturing Co.,Ltd.
2. Q: How can I visit your factory?
A: We can pick you up from Beijing airport if you need, welcome to
visit our factory.
3. Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated
cardboard production line, high speed printing
machine, creasing and die cutting machine,folder gluer,flute
laminator,stitching&strapping machine and other
corrugated cardboard production equipments.
4. Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first”
“integrity-based” corporate purpose always meet
users’ requirements as our sole purpose, providing the products
with excellent quality, professional technology.
Always attach great importance to quality controlling from the very
beginning to the very end.
a. All spare parts we used are genuine.
b. Skillful workers care every detail in handling the producing and
packing process.
c. Quality control department especially responsible for quality in
each process.
d. The machine will be running more than 24 hours before shipping.
e. Each of our machine has its manufacture series number to track
for long time.
5. Q: How is the evaluation of the products?
A: Products are distributed in USA,Russia, Poland,Italy,England,the
Middle East, Mexico,Argentina,Peru,Africa,
Southeast Asia and other countries and throughout the country.
Product quality and enterprise reputation
get the high praise at home and aboard.
6. Q: What is the payment term?
A: 30% deposit will be paid after the contract is signed, and the
remaining 70% will be paid before shipment.
Adopts moisture-proof and shock-proof packaging which is suitable
for long-distance road
transportation and various types of weather conditions. A full set
of maintenance and operation
manuals is included.
