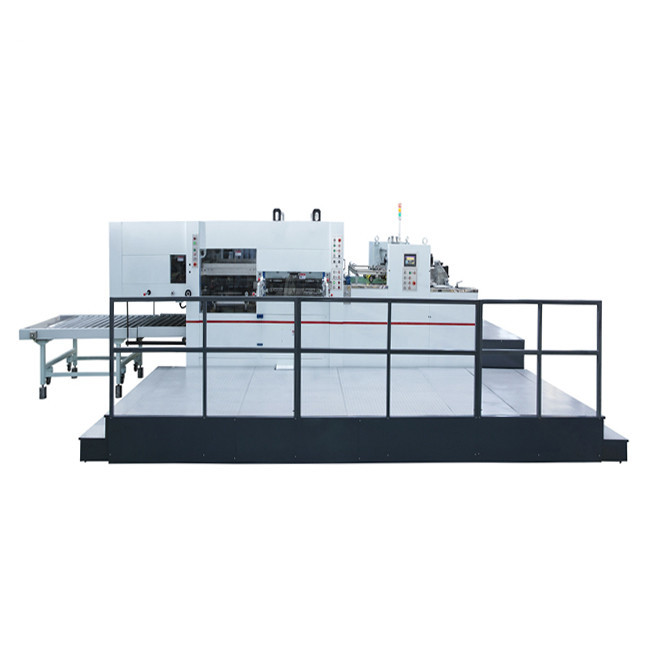

Lead Edge Feeding Die Cutting Machine Cardboard Making Factory
Carton Box Die Cutter
Lead Edge Feeding Die Cutting Machine Cardboard Making Factory
Carton Box Die Cutter. The machine combines several advantages over
many other die-cutters both at home and abroad. Gripper bars with
high intensity are applicable to all kinds of cardboard, paperboard
and corrugated paper. Frontal ,back and side registration mechanism
ensures great precision of die-cutting. Other parts are adopted
such as intermittent mechanism with high precision at clutch,
pneumatic locking mechanism. Adopt programmable controller and
man-machine interface, automatic showing working speed, amount of
paper processed,total running time, etc. It's easy to eliminate
troubles according to the display of trouble shooting. Adopt
transducer to control main motor.
The machine has lots of sensors and safety-ensuring devices to
guarantee the safety if operator and the environment. Frontal and
back pressure can be adjusted separately. It is convenient to stop
the machine by handy. It can also realize die-cutting without
clipper margin.
1. Max. paper size 1670m×1200mm
2. Min. paper size 550mm×500mm
3. Max. Die-cutting size 1650mm×1180mm
4. Max. Die-cutting pressure 400N/cm2
5. Max. Die-cutting speed 5500sheets/h
6. Bite paper edge Min.5-8mm
7. Total power(kw) 32kw
8. Voltage 380V,3PH,50/60HZ
9. Gross weight 25 tons
Lead edge feeding unit
The front plate can be adjusted up and down according to different
paper thickness.Equipped with high pressure
blower,air volume separate frequency control.New up graded lead
edge feeder, more accurate and positive feeding,
greatly increasing the paper adaptability.
Die cutting unit
The safety design of die-cutting floor and knife template and the
design of easily move and slewing devices make the installation and
adjustment of plate more efficient and convenient. The bottom of
cutting plate adopt 3mm thick stainless steel, the active base
plate adopt 2mm thick aluminium plate, that can save human
resources, efficient and convenient.
Delivery unit
The way of taking up Paper lifting Table with Roller bracket
prevents the cardboard surface from being scratched during the
paper delivery process. The whole stacking paper or counting belt
output is convenient and quick. The adjustable spring chain buffers
the driven wheel after tightening, which greatly reduces the
inertial impact of the gripper row steering and maintains the
equilibrium tension of the chain.
1. Q: Are you a factory or trading
company?
A: We are machinery manufacturer which is located in Cangzhou,Hebei
province,China.Cangzhou Gerun Machinery Co.,Ltd.
2. Q: How can I visit your factory?
A: We can pick you up from Beijing airport if you need, welcome to
visit our factory.
3. Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated
cardboard production line, high speed printing
machine, creasing and die cutting machine,folder gluer,flute
laminator,stitching&strapping machine and other
corrugated cardboard production equipments.
4. Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first”
“integrity-based” corporate purpose always meet
users’ requirements as our sole purpose, providing the products
with excellent quality, professional technology.
Always attach great importance to quality controlling from the very
beginning to the very end.
a. All spare parts we used are genuine.
b. Skillful workers care every detail in handling the producing and
packing process.
c. Quality control department especially responsible for quality in
each process.
d. The machine will be running more than 24 hours before shipping.
e. Each of our machine has its manufacture series number to track
for long time.
Adopts moisture-proof and shock-proof packaging which is suitable
for long-distance road
transportation and various types of weather conditions. A full set
of maintenance and operation
manuals is included.
