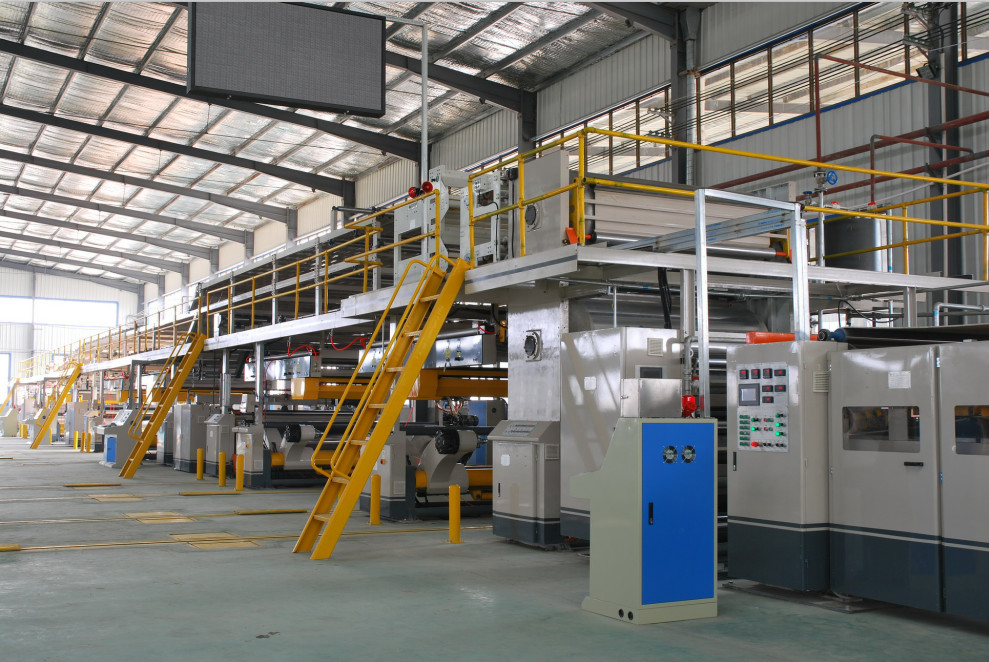

Automatic High Speed 3/5/7 Layers Corrugated Box Cardboard Production Line

1. Consist of mill roll stand, preheated roll, single layer bridge, single facer, NC. cutter-off, etc.

2. Electric Shaftless mill roll stand and hydraulic Shaftless mill roll stands .

3. Finger or fingerless suction single facer.

4. Mechanical type, PLC type, Computer controlled type.

5. Steam heating.

6. Flute type: ACBEFG(Other flute)

7. Minimum slitting with:100mm.

8. Maximum cutting length: 300mm-1200mm. (E flute, F flute, G flute)

9. Maximum production speed: 60M/min-300 M/min.

10. Available with: 1200mm-2800mm.

* Clamping paper roll, moving right-left, arms up-down and paper roll rotation is hydraulic operated. * Support two paper rollers in the meantime, one is working, and another is for spare part. * Adopts “Spring clutch”. * Paper tension controlled by pneumatically operated disc brake, setting the tension easily.

* Corrugated rollers made of 48CrMo alloy steel, with heat treatment for hardness HRC58-60, surface plated with chrome treatment. * corrugating roller: Dia.280mm with a drum. *Press roller: Dia.320mm. with drum. * Vacuum suction Fingerless design provides perfect flute formation in high speed manufacturing. * Gimbal driver system. Individual immersion oil gear type drive box, separating dynamic vibrations improve running stability, easy and fast for maintenance * Gluing roller: surface is embossed with netting design and chrome plated. * Adjustment of upper corrugated roller, pressure roller and glue roller controlled by pneumatic system. * With preheating and preconditioning rollers.

*plates:1780mm(L)×600mm(W)×120mm(H)×9pcs Made of steel plate, polish plate. * Steam pipe for heating plate, divided into 4 sectionsn respectively. * The heating temperature for each section can be showed . * For adjusting the tension of upper cotton belt with one set pneumatic adjusting device.and one set manual adjusting device; Air cylinder:dia.160mmx250mm stroke. * For adjusting the tension of lower cotton belt with: one set manual adjusting device. * For guiding the upper cotton belt with: one set manual adjusting device.

Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road

transportation and various types of weather conditions. A full set of maintenance and operation

manuals is included.

Cangzhou Gerun Carton Machinery Co., Ltd. is a professional company engaged in the design and manufacture of carton machinery. The company is located in Cangzhou Dongguang, the northern carton machinery production base. Over the years, it has always been a leader in research, development and production.

Our Company is a technology-based enterprise mainly engaged in corrugated box machinery, dominated by corrugated box production lines and high-speed ink printing machines, integrating investment, R&D, design, and manufacturing. It has a systematic and large-scale industrial structure. It has developed into a leader in packaging machinery with leading technology and excellent performance.

Our Company has modern mechanical processing equipment and professional technicians to provide users with a guarantee for the production of packaging equipment with reasonable design and qualified quality. In recent years, in order to meet the needs of foreign markets, we pay more attention to the development and production of new high-tech products. Due to the continuous increase of product types and stable quality, we can achieve zero product inventory and no complaints from users.

On the premise of ensuring product quality and service, our company pays more attention to corporate reputation, and always adheres to the principle of "leading technology, creating quality", starting from the interests of customers. Provide high-quality products and services for new and old customers, and win the trust of carton manufacturers!
