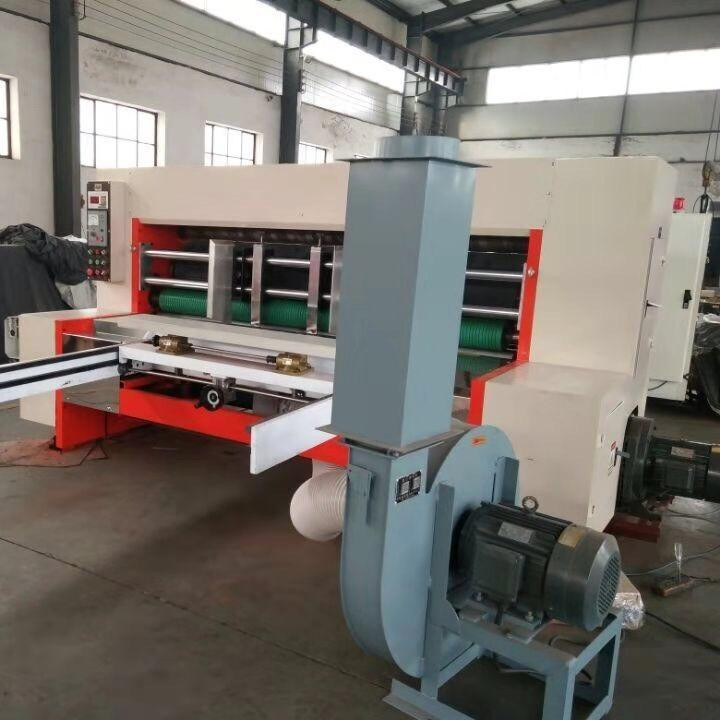

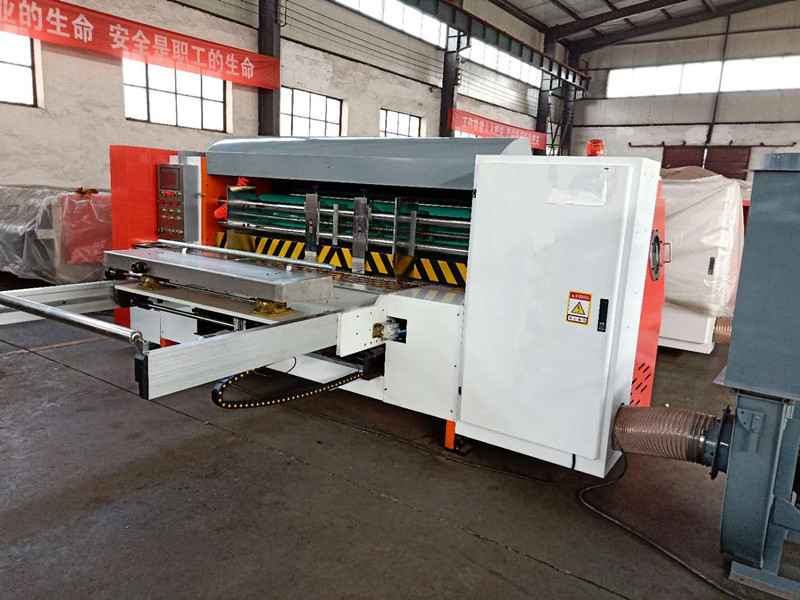

Automatic High Speed Rotary Die Cutter Die Cutting Machine For
Corrugated Cardboard
Series of rotary die cutter for cutting a variety of corrugated
board and all kinds of special-shaped packaging.
It has a high efficiency, power saving, safe features, is the third
generation of domestic rotary die cutter.
The machine is equipped with imported polyurethane felt( anivil
cover), its service life of up to 10 million times,
the line speed automatic compensation function can ensure that the
blanket wear after the mold cut out the
normal size of the cardboard, soft roller repair mechanical color
can extend the service life of three Times
The feeding system uses vacuum system,increase use speed.
| Model | Unit | 1200*2200/2400/2600 | 1400*2200/2400/2600 | 1600*2400/2600/2800 |
| Max cardboard size | mm | 1200*2000/2200/2400 | 1400*2000/2200/2400 | 1600*2200/2400/2600 |
| Min cardboard size | mm | 350*600 | 400*600 | 450*600 |
| Cardboard thickness | mm | 2-8 | 2-8 | 2-8 |
| Design speed | pcs/min | 160 | 160 | 160 |
| economic speed | pcs/min | 80-140 | 80-140 | 80-120 |
| Max die cutting size | mm | 1200*1950/2150/2350 | 1400*1950/2150/2350 | 1600*2150/2350/2550 |
| Attachment mould roller diameter | mm | φ360 | φ432 | φ487 |

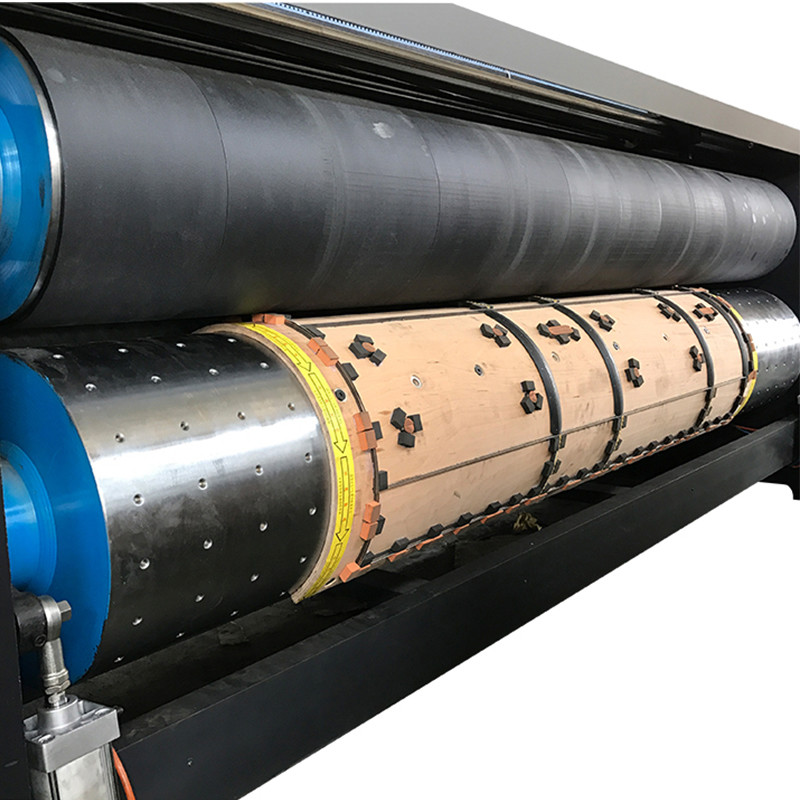

Die Cutting Unit: Ø Die-cutting roller for the high quality centrifugal casting
materials, 40mm thickness,balance correction, hard-chrome plating. Ø Wallboard for high-quality steel material, 50mm thickness , and
large processing center production Ø Soft-roller automatic grinding institutions to pouches repeat
usage, grinding 3-4 times. Ø Line speed automatic compensation to ensure that each batch of
cardboard boxes full of die-size line Ø Polyurethane ruber imports of soft pouches, easy of installation,
the die 12,000,000 times,(Spain,Rodicut brand) Normally
life:8000000-12000000 times.(depend on paperboard and pressure) Ø Mechanical soft roll about 40 mm lateral movement, the pads wear
uniform. Ø Die-cutting roller cylinder automatic separation devices to
reduce wear pouches. Paper Feeding Unit: Ø Adopt the leading edge of the world's advanced paper feeding
system, feeding of high precision, fast speed feeding wheel life is
long, implement paper 10000 copies /hour,precisionof±0.75mm. Ø Fan motor volume can be arbitrary adjustment, to meet the
requirements of the feed airvolume. Ø Phase controlled by microcomputer, it can be 360 degree phase
adjust, fast and accurate. Ø Manually adjust the front board, side baffle board computer
adjustment. Ø Paper guide roller grooved surface to prevent pressure bad board,
increase the feeding accuracy. Computer Unit: Ø The man-machine interface, full precision computer PLC control
system, perfect protection function, control of high reliability. Ø Main Motor Frequency Control, save power, smooth acceleration. Ø On the control panel before and after the concise, easy to
operate. Ø The machine is by light, electricity, gas joint control system Ø The whole machine electrical accessories adopt: Hong Kong dragon
contactor from SONY, the Japanese Omron time relay, South Korea
autonics brand photoelectric switch, zhejiang chint production
intermediate relay, wuxi letter jie brand such as PLC, touch
screen, a well-known brand manufacturers. |
 |
1. Q: Are you a factory or trading
company?
A: We are machinery manufacturer which is located in Cangzhou,Hebei
province,China.Cangzhou Shengchuan Machinery Manufacturing Co.,Ltd.
2. Q: How can I visit your factory?
A: We can pick you up from Beijing airport if you need, welcome to
visit our factory.
3. Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated
cardboard production line, high speed printing
machine, creasing and die cutting machine,folder gluer,flute
laminator,stitching&strapping machine and other
corrugated cardboard production equipments.
4. Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first”
“integrity-based” corporate purpose always meet
users’ requirements as our sole purpose, providing the products
with excellent quality, professional technology.
Always attach great importance to quality controlling from the very
beginning to the very end.
a. All spare parts we used are genuine.
b. Skillful workers care every detail in handling the producing and
packing process.
c. Quality control department especially responsible for quality in
each process.
d. The machine will be running more than 24 hours before shipping.
e. Each of our machine has its manufacture series number to track
for long time.
5. Q: How is the evaluation of the products?
A: Products are distributed in USA,Russia, Poland,Italy,England,the
Middle East, Mexico,Argentina,Peru,Africa,
Southeast Asia and other countries and throughout the country.
Product quality and enterprise reputation
get the high praise at home and aboard.
6. Q: What is the payment term?
A: 30% deposit will be paid after the contract is signed, and the
remaining 70% will be paid before shipment.
Adopts moisture-proof and shock-proof packaging which is suitable
for long-distance road
transportation and various types of weather conditions. A full set
of maintenance and operation
manuals is included.
