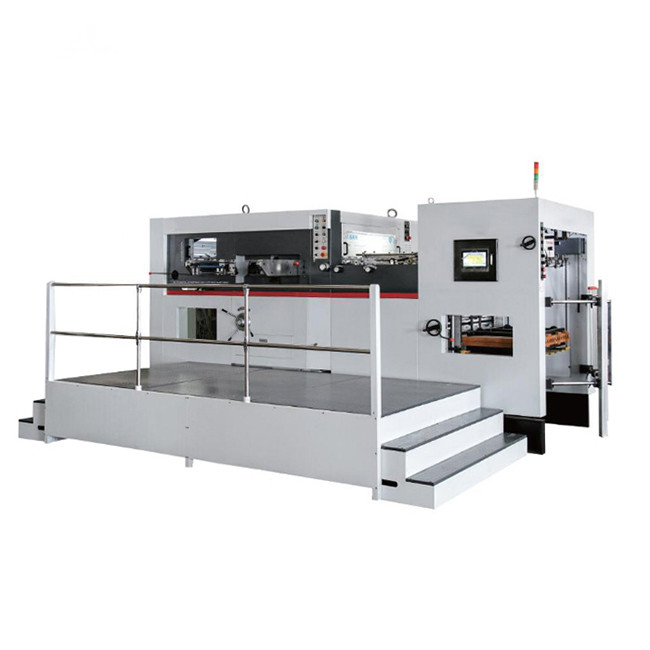

Automatic Paper Cardboard Die Cut Paperboard Flatbed Die Cutting
Corrugated Machine
The flat and die cutting mechanism of the flat die cutting machine
is flat, and the vertical flat die cutting machine is vertical when
the plane of the pressboard and the pressboard is vertical. When
the die cutting machine is working, the press plate presses through
the press to the plate. The different trajectory of press plate can
be divided into two types: one is that the press plate is swinging
around the fixed hinge, so in the moment of the beginning of the
die press, there is a certain angle between the plate working face
and the template surface, which makes the die cut earlier cut into
the lower part of the cardboard, which will easily cause the
overpressure in the lower part of the mold plate and the upper part
not completely cut through. In addition, the force of die cutting
will cause lateral displacement of cardboard. When the die cutting
machine is working, the press plate is driven by the connecting
rod, and the cylindrical roller is used as the fulcrum, and it
swings on the flat guide rail of the machine seat. When the working
face of the press plate is transferred from the tilt to the
parallel position of the press plate, the plate is pressed parallel
to the die cutting plate in parallel way.
| Model | MY-1060 |
| Max.feeding size | 1060*780mm |
| Max.die cutting size | 1060*770mm |
| Min.die cutting size | 400*370mm |
| Max.die cutting pressure | 300N/cm² |
| Die cutting precision | ±0.1mm |
| Cardboard thickness | cardboard 200-2000gsm Corrugated board ≤4mm |
| Max.die cutting speed | 7500 sheets/h |
| Stacking height | 1500mm |
| Total power | 18 kw |
| Weight | 18.5T |
| Dimension | 7800×3990×2300mm |
Feeder feeding unit

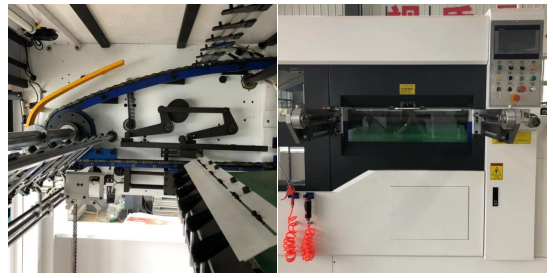

Host machine unit
German IWIS chain & aviation aluminum tooth row

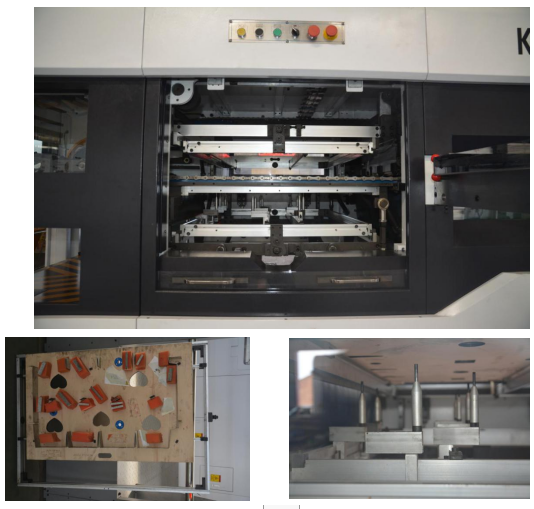

Die cutting unit
Waste remove unit(Optional)
Stacking unit
1. Q: Are you a factory or trading
company?
A: We are machinery manufacturer which is located in Cangzhou,Hebei
province,China.
2. Q: How can I visit your factory?
A: We can pick you up from Beijing airport if you need, welcome to
visit our factory.
3. Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated
cardboard production line, high speed printing
machine, creasing and die cutting machine,folder gluer,flute
laminator,stitching&strapping machine and other
corrugated cardboard production equipments.
4. Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first”
“integrity-based” corporate purpose always meet
users’ requirements as our sole purpose, providing the products
with excellent quality, professional technology.
Always attach great importance to quality controlling from the very
beginning to the very end.
a. All spare parts we used are genuine.
b. Skillful workers care every detail in handling the producing and
packing process.
c. Quality control department especially responsible for quality in
each process.
d. The machine will be running more than 24 hours before shipping.
e. Each of our machine has its manufacture series number to track
for long time.
5. Q: How is the evaluation of the products?
A: Products are distributed in USA,Russia, Poland,Italy,England,the
Middle East, Mexico,Argentina,Peru,Africa,
Southeast Asia and other countries and throughout the country.
Product quality and enterprise reputation
get the high praise at home and aboard.
6. Q: What is the payment term?
A: 30% deposit will be paid after the contract is signed, and the
remaining 70% will be paid before shipment.
Adopts moisture-proof and shock-proof packaging which is suitable
for long-distance road
transportation and various types of weather conditions. A full set
of maintenance and operation
manuals is included.
