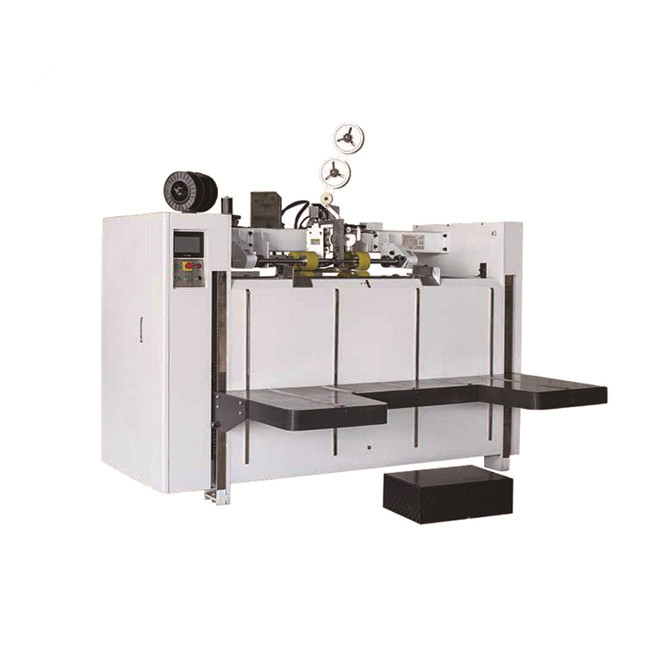

Semi Auto Cardboard Box Stapler Carton Corrugated Box Stitcher
Nailing Machine
Feeder part: The belt leading edge of automatic box sticking
machine, vacuum adsorption; Electromagnetic clutch control start
and stop;Full automatic control of left-right movement of the
gauge, adjustable feeding gap;Can be independently equipped with
semi-automatic nail box machine
Folder part: The left and right folding parts automatically adjust
the tying function, vacuum adsorption, to ensure that the cardboard
folding will not skew;And equipped with automatic calibration
device, servo control, ensure that the carton will not appear
scissors mouth.
Nail part:The power of the nail head is servo motor, mechanical
speed : 600 nails/min, three nails can be nailed 50-60 pieces;3-5
minutes to adjust the size, simple and quick;This machine can be
used for double stitching and single stitching.
FEATURES:
1. One minute quick order change.
2. Easy operation , no need experience worker.
3. Single nail /, double nail// and strengthen nail // / / / // are
available ,can be shifted to each stitching mode easily.
4. Counter in the feeding part can set the number of the packing,
easy for packing.
5. The machine can be generally applied to the three-layer or
five-layer cardboard boxes. As for the seven-layer boxes, the
equipment needs to be customized
6. It takes the advantages of high speed and high efficiency.
7. Double Servo motor model, PLC controller, easy operation.
| Max size(A+B)X2 | 2600mm | Min length A | 200mm |
| Min size(A+B)X2 | 780mm | Max height D | 650mm |
| Max size(C+D+C) | 1000mm | Min height D | 200 mm |
| Min size(C+D+C) | 340mm | Max width of tongue E | 30-40 mm |
| Min rock cover C | 25mm | Width of machine | 4300mm |
| Max rock cover C | 320mm | Weight of machine(T) | 7 |
| Max width B | 610mm | Speed of machine(nail/min) | 600 |
| Min width B | 185mm | Qty of nail | 1-99 |
| Max length A | 710mm | Distance of nail | 30-80 |
* Japan's Anchuan/Mitsubishi original imported double servo drive,
accurate accuracy, mechanical transmission part reduction, can
effectively reduce the mechanical failure rate
* Taiwan Weinview touch screen operation, parameters (nail distance,
number of nails, nail type, back panel) change quickly and easily
* The rear electric baffle is driven by stepper motor, the size is
accurate, and the size is more convenient and quick
* The whole set of nail heads are all made of original Taiwanese
parts, and the machine head has a longer service life
* Can be nailed single nail, double nail, and reinforced nail (two
ends are double nails in the middle part), which can be done in one
time, which can meet different requirements of different customers
* Change the size of the carton and adjust the carton nail distance
in one minute, saving time and easy operation
* Two-way front and rear baffle, can be nailed with a cover box, no
cover carton
* The front feed unit automatically counts, and the paper feed
table is equipped with a photoelectric sensor that automatically
rises when feeding
* There is an automatic counting function in the back section. The
number of finished products that can be prepared can be sent to the
end of the conveying machine in a set number (2-99), which is
convenient for packing and bundling
* Electric adjustment of paper pad rubber wheel gap
* Order adjustment of the whole machine, can store 1000 orders
* The whole machine isolating transformer protection device to
better protect the service life of the whole computer hardware
* Automatic wire feeding system without wire alarm, 20KG large flat
wire, saving time
Adopts moisture-proof and shock-proof packaging which is suitable
for long-distance road
transportation and various types of weather conditions. A full set
of maintenance and operation
manuals is included.
