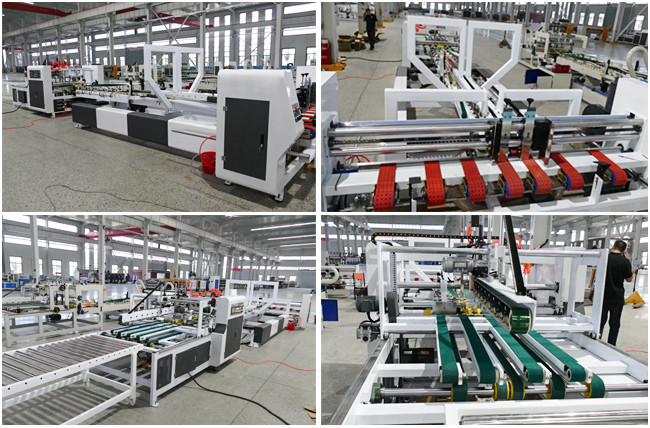

High Speed Fully Automatic Corrugated Box Stitching Machine Paper
Board
◆The machine full computer control automatic tuning single,easy to
operate,simple;Can store 1000 nail single.
◆Screw mixer bottomleess with cover box can also be(when ordering);
◆3-5 minuters to adjust size,simple and quick;
◆Nail head power for the servo motor,mechanical speed:800
nail/minuties.
◆Pieces paper department adopts the vacuum adsorption front belt
paper make sure the carton is not skewed ;
The machine front feeder belts,belt height can be adjusted
separately,increase service life;
◆Pieces into the paper with side lapping device can send paper
neatly smooth.
◆Mixer feeding machine adopt servo motor control,to ensure that the
nail from the stable and accurate;
◆This machine design have box plastic function,ensure no scissors
in nailing,neatly not skew;Before and after the
machine to ensure the scissors mouth can't more than plus or minus
2 mm.
◆In pieces the machine can be double screw, single screw,
strengthen nails, double and screw and single head
screw onetime complition ;
◆The machine adopts computer screen operation,and display the fault
description;
◆In pieces the machine can be nailed three layer, five layer
carton(statement in advance with order)is required
for a seven layer;
◆An automatic counting stacking quantitative output in pieces the
machine finally.
◆Pieces of native baling part for matching.
◆Mixer machine during normal operation appear skewed,will
automatically stop.
maximum(A+B)*2 | 3000mm | the minimum length A | 250mm |
minimum(A+B)*2 | 900mm | the maximum height D | 1150mm |
maximum(C+D+C) | 1200mm | the minimum height D | 250mm |
minimum(C+D+C) | 350mm | nail tongue width E | 35--40mm |
the minimum roll cove C | 25mm | Mechanical length | 19000mm |
the biggest shake cove C | 560mm | Machine width | 4450mm |
the maximum width B | 1320mm | Machine weight(T) | 25 |
the minimum width B | 200mm | speed(nail/min) | 800 |
maximum length | 1320mm | order | 1--99 |
pitch of nails | 30--80 | Nailing speed | 120m/min |
sticky box speed | 200m/min | power(kw) | 60 |
Nail head speed | 800 nail/min |
The minimum thickness of the board | 4mm |
The maximum thickness of the board | 12mm |
U nail internal width | 12mm |
Flat wire specifications | 17#(2.0*0.75) |
Nail box inclination | 45 |
The minimum distance of nailing | 30mm |
The motor power | 12kw |
Main Configuration
★French Schneider original imported dual servo drive, accuracy,
mechanical transmission part reduction, can effectively reduce the
failure rate of machinery.
★Weilan touch screen operation, parameters (nail distance, nail
number, nail type, rear baffle) convenient and fast change.
★The whole control system adopts Japanese Omron PLC control system.
★Rear electric baffle, driven by stepper motor, accurate size, more
convenient to change size.
★The full contactor in the control cabinet adopts Mitsubishi brand.
★The optoelectronic and proximity switches use schneider brand.
★Bottom die, blade made of Japan tungsten steel (wear - resistant).
★The whole group of nails are all made of special steel, computer
gong precision machining.
★Can suit the different requirements of different customers.
★It takes only one minute to change the size of the carton and
adjust the stitching distance of the carton, greatly saving time
and convenient operation.
★The front feed unit counts automatically, and the feed table is
equipped with photoelectric induction device, which rises
automatically when feeding.
★The back section has an automatic counting function, and the
finished sheets can be sent to the end of the feeding machine in
stacks according to the set number (1-99), which is convenient for
packing and strapping. ★Mechanical speed: 450 nails/min.
★Nail distance :200-260mm adjustable.Electric adjustment of press
rubber wheel gap.
★Protection function of electrical isolating transformer of whole
machine;
★Front and back baffle configuration, can order carton and small
cardboard box, color box.
★Japanese special die steel forging for head punch body.
| Feeding sectionPaper feeding part adopts frequency conversion timing belt,vacuum
adsorption front ,equipped with side flapping device,ensure that
the deed in not skew. |

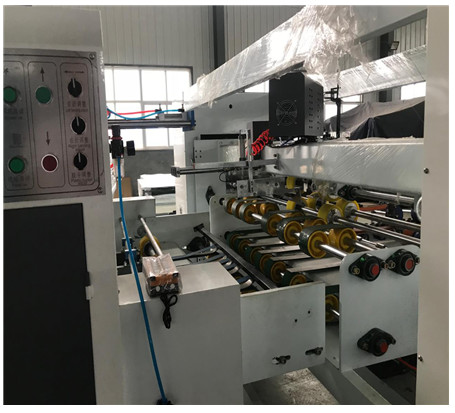

Folding sectionThe folding characteristics is mounted with creasing wheel,carries
on second time of creasing.This makes the folding of the carton
more beautiful.This machine before stitching box in the folded part
have a shaping device,folding the carton before stitching,ensure
there is no scissors difference. |  |
 | The correction section:The correcting section adopts the serve motor to correction,then
synchronous belt transport the box into stiching section,ensure no scissors difference. |
Stitching sectionStitching head adopts special materials ,durable and not easy to
damage,speeds up to 800/1000 nails per minute ,the machine features
is that the head adopt servo motor dirct drive,speed is stable and
accurate.Can do single nail,double nails,head and tail stitch,strengthening
the middle stick operation.A nial line using 2 spools 20 kilograms
of automatic wire feeding,reduce the time for changing wire spool. |  |
Adopts moisture-proof and shock-proof packaging which is suitable
for long-distance road
transportation and various types of weather conditions. A full set
of maintenance and operation
manuals is included.
