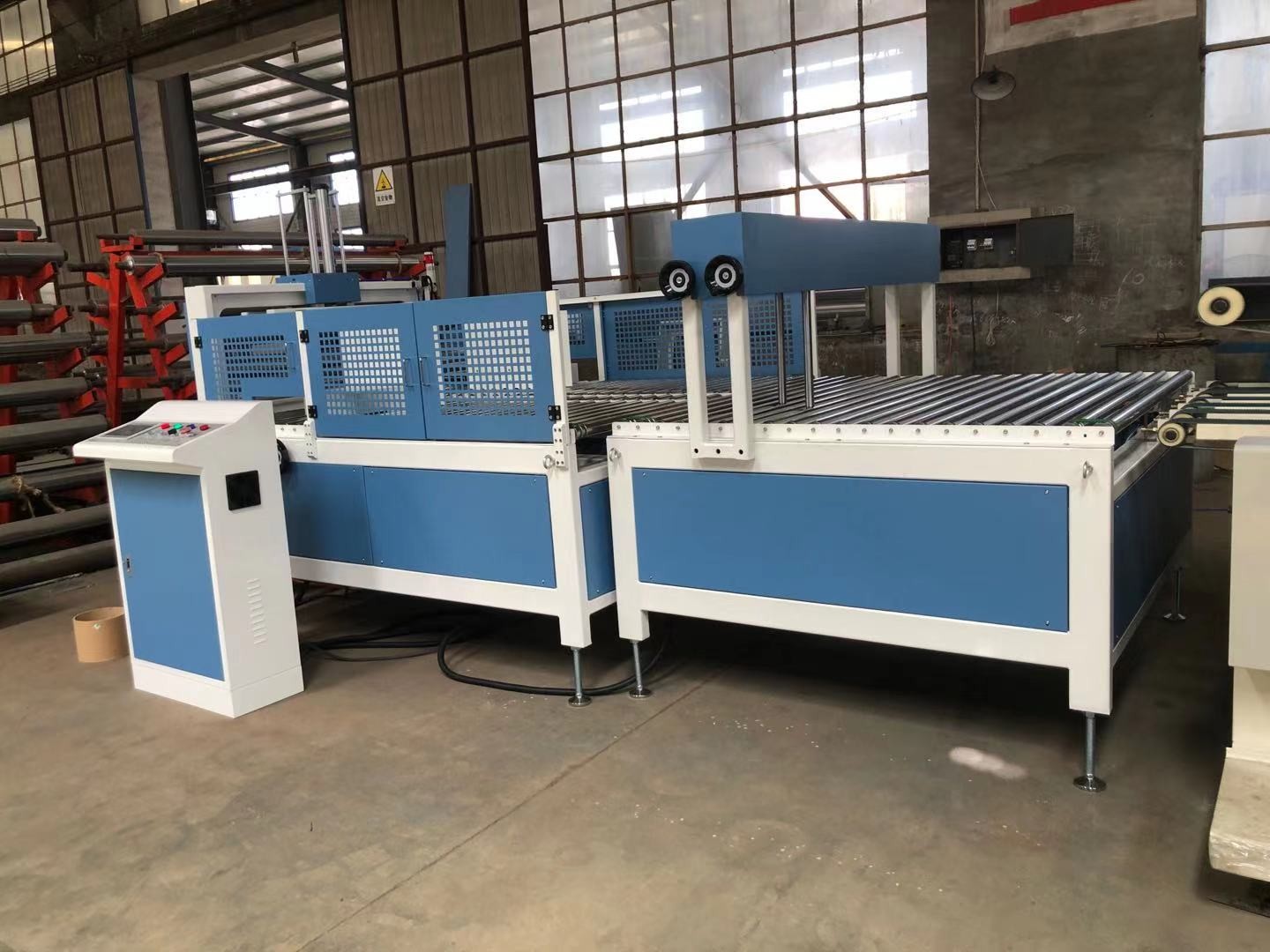

Fully Automatic Carton Box PP Strapping Machinery Cardboard Bundling Machine

1. This product is suitable for use in carton manufacturers for matching folder gluer maachine

or stiching machine . The finishing package can be adjusted automatically according to the carton size.

2, the form of strapping: parallel 1-2 circle , the way there are photoelectric and manual

3, the ram steering power roller conveyor line: speed: 45mm / min.

4, the bottom bonding surface ≥ 90% bonding width ≥ 20mm bonding position deviation ≤ 0.5mm 5,

as needed:configure the EFFL telescopic rack connected to other equipment. 6, the size of the transport equipment: length 4850 × width 2300× height 2000 (excluding telescopic rack)

1. The strapping machine consists of three units. paper conveyer and steering unit,gather align

unit and no-man power strapping unit.
2. This strapping assembly line is a fully automatic strapping assembly line with the integration

of machinery, electricity and gas.
3. Fast packing speed: PLC control, stable performance, compact packing time, faster.
4. Operating capacity:9-18 pieces/ min.
5. Working environment: the relative humidity is less than or equal to 90%, the temperature is

0-40 degrees Celsius, and the noise is less than or equal to 75 dB (A).
6. The bandwidth is 5 mm - 9 mm, optionally. the tape reel specification: the inner diameter of the

paper core with the ring is 200-210 mm, the outer diameter of the belt ring is 400-450 mm, and

the band width is 175-190 mm.
7. Bonding method: hot fusion.
8. The bonding mode: the bottom is adhered, the bonding surface is more than or equal to 90 percent,

the deviation of the bonding position is less than or equal to 2 millimeters, and the bundling tightness is 0-45Kg.
9. Air source pressure: 0.5-0.8MPa. roller material: stainless steel. roller diameter: 50mm,

wall thickness: 1.2-1.5mm.
10. Transportation speed: 0 -50m / min.

Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road

transportation and various types of weather conditions. A full set of maintenance and operation

manuals is included.
