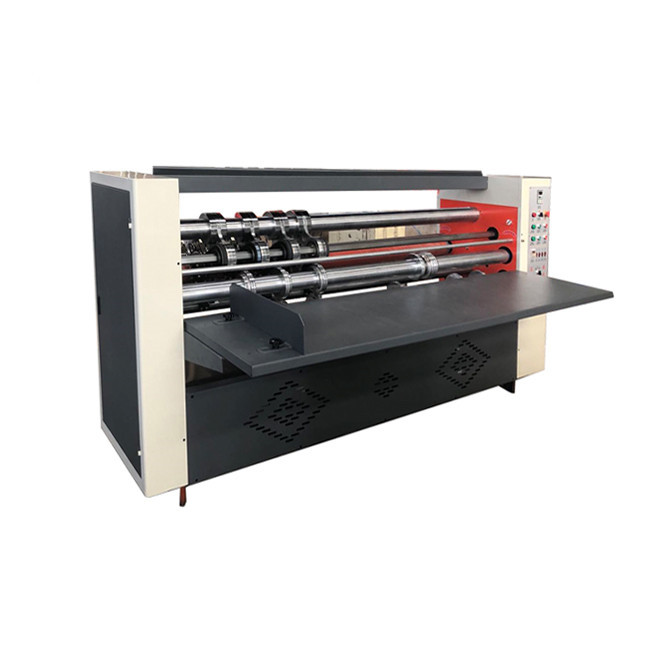

Carton Corrugator Single Facer Slitting machine

    Buy cheap Carton Corrugator Single Facer Slitting machine from wholesalers

    Buy cheap Carton Corrugator Single Facer Slitting machine from wholesalers
    • Buy cheap Carton Corrugator Single Facer Slitting machine from wholesalers
    • Buy cheap Carton Corrugator Single Facer Slitting machine from wholesalers
    • Buy cheap Carton Corrugator Single Facer Slitting machine from wholesalers

    Carton Corrugator Single Facer Slitting machine

    Ask Lasest Price
    Brand Name : IPACK
    Model Number : 2000
    Certification : CE,ISO
    Price : To be negotiated
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30 sets/month
    Delivery Time : 10-30days
    • Product Details
    • Company Profile

    Carton Corrugator Single Facer Slitting machine

    Slitting crease corrugated carton making thin blade slitter scorer machine

    Introduction

    paper feeder system:

    Manual feeder or automatic feeder

    The number of blade:

    Four knives and six lines

    Five knives and eight lines

    Six knives and ten lines

    Knife adjustment method :

    Manual adjustment

    Electric adjustment


    Carton Corrugator Single Facer Slitting machine

    Parameters

    Model200023002600
    Machine dimension(mm)2600*750*14002900*750*14003200*750*1400
    Motor power344
    Max slitting width(mm)Inverse190022002500
    Positive blade180021002400
    Min slitting width(mm)Inverse305305305
    Positive blade140140140
    Min slitting length(mm)435435435
    Min scoring width(mm)Positive scoring303030
    Inverse scoring808080
    Scoring height(mm)0-100-100-10
    Blade(mm)φ200×122×1.2
    Slitting scoring composed typeThree blade Four scoring/Four blades Six scoring/Five blade Eight scoring

    Detailed Images
    Carton Corrugator Single Facer Slitting machine

    Main transmission is leather belt .Low noise and durable.
    Motor adjust by Electromagnetic , smooth and steady work.

    Knife thickness only 1 mm.Edge smoothed,after Slitting. non-pressing,and the line smooth.


    With scaleplate :
    When it worked , Can adjust the size ,Easy and convenient operation

    Carton Corrugator Single Facer Slitting machine
    Carton Corrugator Single Facer Slitting machine

    Pneumatic rod support the safety net.When it open, Whole electric cut off.
    alarm lamp and lamp inside safety net light, Sufficient lighting at night.

    Adopt hard press soft . Apply to all kinds of paperboard .Creasing difficult to rip.

    The edge keep straight.

    Prepressing function :
    In order to Keep the paperboard non-rip , Prepressing the paperboard advance .So that can Achieve the best result of creasing .

    Carton Corrugator Single Facer Slitting machine
    Packing and Shipping

    Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road

    transportation and various types of weather conditions. A full set of maintenance and operation

    manuals is included.

    3
    Our Services

    Q: 1.Are you a manufacturer, trading company or a third party?

    A: We are a manufacturer, [Cangzhou Shengchuan Machinery Manufacturing Co.,Ltd] located in Xiaoxing Industrial zone,south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.

    Q: 2. What is your minimum order quantity, can you send me samples?

    A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.

    Q: 3. How does your factory do regarding quality controlling?

    A: (1) All raw material we used are environmental-friendly.

    (2) Skillful workers care every details in handling the producing and packing process.

    (3) Quality control department are specially responsible for quality in each process.

    We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.

    Q: 4.What is the delivery time of your machine?

    A: In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.

    Q: 5.How about the after-sale service?

    A: (1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

    (2) To solve the problems with videos/pictures.

    (3) One year warranty for spare parts change.
