3/5/7 Ply Corrugated Paper Production Line Automatic High Speed

Ask Lasest Price
Brand Name :	IPACK
Model Number :	2500mm
Certification :	CE,ISO
Price :	To be negotiated
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	5 sets/month
Delivery Time :	30-60days

Add to Cart

Product Details
Company Profile

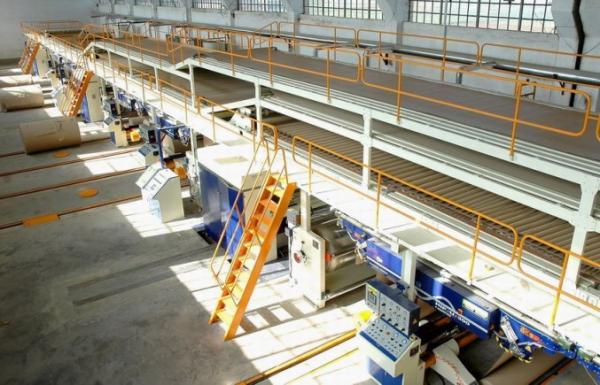

3/5/7 Ply Corrugated Paper Production Line Automatic High Speed

Automatic High Speed 3/5/7 Layers Corrugated Box Cardboard Production Line

3/5/7 Ply Corrugated Paper Production Line Automatic High Speed

Parameters

Corrugated cardboard production line is the professional and ideal equipment for producing fluted cardboard. The 3 ply, 5 ply, 7 ply multi-functional corrugated cardboard plant becomes more and more popular with the developing of package and express industry. It mainly includes the following equipment: Hydraulic mill roll stand, surface paper (core paper) pre-heater and pre-conditioner, single facer, conveying over bridge, gluing machine, double facer of corrugating fiber board plant, slitter scorer, helical cross cut-off, simple delivery conveyor and gantry stacker, heating system, air compression system and glue system, etc. The 3 ply corrugated plant, 5 ply corrugating fiber board line, 7-ply corrugated line, we have high, middle and lower grade with different-specification and different-quality equipment to match customer demands. 5 ply in- line combined automatic corrugated paper box making plant fitted with narrow flute rolls with single facer, motorized hydraulic reel stand, over head bridge, glue unit, with hot plates and cut off unit, eddy current motor and steam arrangement / thermal fuel (oil heating system).

Detailed Images

*plates:1780mm(L)×600mm(W)×120mm(H)×9pcs Made of steel plate, polish plate.

* Steam pipe for heating plate, divided into 4 sectionsn respectively.

* The heating temperature for each section can be showed .

* For adjusting the tension of upper cotton belt with one set pneumatic adjusting device.and one set manual adjusting device; Air cylinder:dia.160mmx250mm stroke.

* For adjusting the tension of lower cotton belt with: one set manual adjusting device.

* For guiding the upper cotton belt with: one set manual adjusting device.

Packing and Shipping

Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road

transportation and various types of weather conditions. A full set of maintenance and operation

manuals is included.

Our Services

Q: 2. What is your minimum order quantity, can you send me samples?

A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.

Q: 3. How does your factory do regarding quality controlling?

A: (1) All raw material we used are environmental-friendly.

(2) Skillful workers care every details in handling the producing and packing process.

(3) Quality control department are specially responsible for quality in each process.

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.

Q: 4.What is the delivery time of your machine?

A: In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.

Q: 5.How about the after-sale service?

A: (1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

(2) To solve the problems with videos/pictures.

(3) One year warranty for spare parts change.
