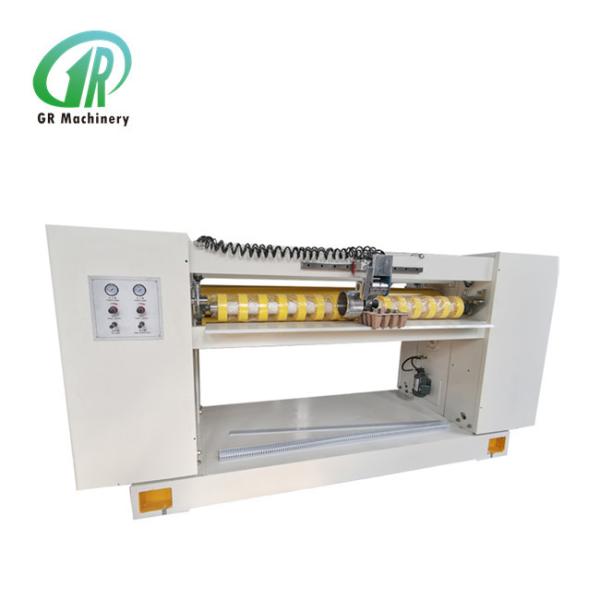

    ISO 2200mm NC Cutter Machine Of Corrugated Cardboard Production Line

    NC Cutter Machine Of Corrugated Cardboard Production Line


    Product Description:

    1. It can store 200 units orders,replace the cutter specifications quickly and accurately,changing orderswithout stop,And enables networked computers to facilitate production management.
    2. Knife shaft drive gears are precision forged steel induction hardening, backlash-free transmission, advanced keyless connection, high transmission accuracy.
    3. Cutting machine adopts inlaid front steel blade knife spiral structure, serrated knife. scissors, shears, shear force, long blade life.
    4. Around feed rollers are used the sun gear platen way, smooth delivery, pressure evenly, easy to crush plate board or cause blockage.
    5. This model is the braking energy storage (non-dynamic braking), so the energy consumption in the production process, the average electricity consumption is 1/3 of an ordinary NC cutting machine, saving more than 70% power to reach the goal of saving money.
    6. Precision adjustable no gap gear to ensure precise blade engagement, running balance.
    7. Using an independent oil pump and filter with two copper distribution in each gear position oil, lubrication and cooling.
    8. Knife roller: fine quality forged steel material, the balanced, with good stability.


    Roller diameter parameters:
    1.Cross on the knife shaft center distance:¢216mm
    2.Before the lower conveying roller diameter ¢156mm
    3.After the lower conveying roller diameter: ¢156mm
    4.The front of the platen roller diameter: ¢70mm
    5.The front of the platen roller diameter: ¢70mm
    Note: After all have been grinding rollers, hard chrome plated at (on except under the knife shaft) dealing.



    ISO 2200mm NC Cutter Machine Of Corrugated Cardboard Production LineISO 2200mm NC Cutter Machine Of Corrugated Cardboard Production Line



    Technical Parameter:

    Product name

    NC Cutter Helical Knives Corrugated Cardboard Production Line 2200mm Width
    CategoryNC Cutter Helical Knives Machine

    Effective width

    2200mm

    Operation direction

    Left or Right

    Highest machinery speed

    100m/min

    Mechanical configuration

    Computer-control helical cross cutter

    Minimum cutting length

    500mm

    Maximum cutting length

    9999mm

    Equipment size

    4.2X1.2X1.4m

    Single weight

    3500Kg
