    HL-A-IV Automatic Flute Laminating Machine High Precision Corrugated Paperboard

    Ask Lasest Price
    Brand Name : GERUN
    Model Number : GR
    Certification : ISO,CE
    Price : USD1000~10,000/set
    Payment Terms : T/T
    Supply Ability : 30set/month
    Delivery Time : 30-60days
    • Product Details
    • Company Profile

    HL-A-IV Automatic Flute Laminating Machine High Precision Corrugated Paperboard

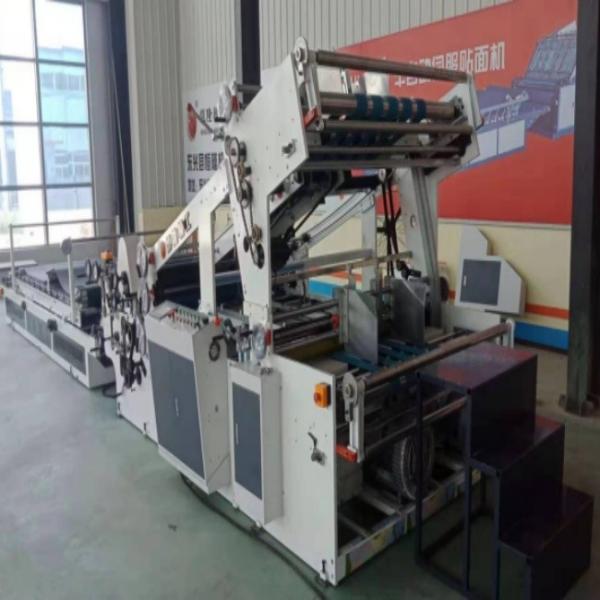

    HL-A-IV Automatic Flute Laminator


    Automatic Flute Laminator is A fast fitting tool for corrugated and corrugated paper , the whole machine design is composed of two automatic paper feeding machines, (that is, two layers of corrugated paper feeding machines), A group of gluing, a group of laminating host, a group of pressing conveyor, suitable for printing paper and A+A corrugated, A+B corrugated,A+E corrugated,B+A corrugated,B+B corrugated,B+B corrugated,B+B corrugated,B+B corrugated,B+B corrugated, can be exchanged arbitrarily, can also be used as printing paper (more than 300 grams) and ABE corrugated paste for three layers of cardboard, but also corrugated paper and corrugated paper for four layers of corrugated board, or multi-layer cardboard arbitrary fit, for printing process processing equipment, accurate operation, The fast operation of the high-efficiency unit, to customers to save manpower weapon.


    Main Characteristics

    1.Adopting back pusher , back positioning feeding , equipped with spring side lay and bottom suction system , to make our machine suitable for all kinds of paper , and keep the good characteristics of easy operation and convenient maintain .


    2.The glue roller adopts high design , match with anilox to glue distributing , the uniformity of coating was improved greatly, increasing the intensity of draping , reduce the cost of customer production .


    3.The steel roller through the balanced treatment and test , match the tight assembling to make higher stability . And adopting the timing belt and tooth type belt driving , make the machine running with higher precision and lower noise.


    4.Adopting the liquid control system , automatic gluing , and the glue can be cycle used , avoid glue waste and labour strength .


    5.Self-developed high-strength feeder with high configuration electric system make the machine running stable and lower failure rate, the electric parts adopt international wide available brand or well-known Chinese brand.



    Technological Parameter

    ModelHL-1300A-IVHL-1450A-IVHL-1600A-IV
    Max Laminating Size ( W×L )1300mm*1100mm1450mm*1100mm1600mm*1400mm
    Min Laminating Size ( W×L )350mm*350mm350mm*350mm450mm*450mm
    Economical Speed0-9000 sheets/h0-9000 sheets/h0-9000 sheets/h
    Laminating Precision≦+/- 1.5mm≦+/- 1.5mm≦+/- 1.5mm
    Total Power12 kw12 kw13 kw
    Machine Length12.5m12.5m15m
    Machine Weight6.8 tons7.2 tons8.0 tons

    Main Configuration

    Display screenBeijing MCGS
    Optoelectronic switchSchneider , France
    Mianframe Motor

    5.5 KW 3-phase motor ,

    Hengshui Mengniu

    Servo DriverINVT
    Reducer motorCHINA DRIVE XINFULONG Group
    Phase regulatorJapan / Beijing
    Electromagnetic clutchCHAIN TAILCO.,LTD
    Vacuum pump

    Zhenjiang SIEG machinery co.,ltd /

    Shanghai Dongyang

    Vortex pumpEMORE HORN , Taiwan
    Synchronous belt

    America GATES /

    Ningbo Beidi (Joint venture)

    BearingJapan NSK , Korea SKF
    ChainJapan KCM
    Transfer press beltNetherlands / Italy
    PLCPanasonic , Japan
    ContactorFUJI , Japan
    The host inverterFUJI Japan / Schneider France
    Pressure flatform inverterPanasonic , Japan
    Pressure flatform motorGPG , Taiwan

    Our company
    HL-A-IV Automatic Flute Laminating Machine High Precision Corrugated PaperboardHL-A-IV Automatic Flute Laminating Machine High Precision Corrugated Paperboard


    Product packaging
    HL-A-IV Automatic Flute Laminating Machine High Precision Corrugated Paperboard
