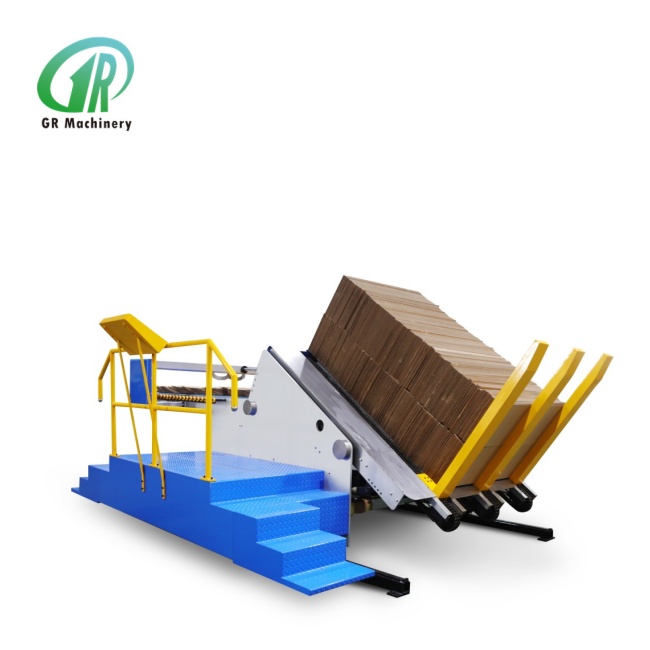

Model 1228 Fully Automatic prefeeder machine

Mechanical Specifications:

1. Maximum paper feeding size: 1200ⅹ2800mm

2. Minimum paper feeding size: 260ⅹ755mm

3. Maximum paper loading height: 2000mm

4. Maximum paper weight: 1200kg

5. Maximum paper feeding speed:

(Cardboard thickness below 4mm ≥ 420 sheets/minute)

(Cardboard thickness below 8mm ≥ 300 sheets/minute)

6. Maximum speed requirements:

a. Paper loading height >1600mm or above.

b. The number of paper stacks per board should be in a single stack.

c. Cardboard bending requirements: 5% in paper width direction (1000mm allows bending within 50mm).

d. The printing surface of the cardboard must be on the same side.

e. At least one sheet of paper must be kept waiting on the power track at the front end of the paper feeder's fork.

7. Shift fork reverse power hydraulic drive

8. Horizontal conveyor lifting power hydraulic drive

9. Paper feeding method: single stack

10. Paper feeding method: electric crawler logistics (fixed on the ground)

11. One-click order arrangement and order memory functions.

12.Hydraulic standby function (automatic standby beyond the set time)

13. Human-machine interface adjustment of relevant parameters.

14. Abnormal text display can be easily and quickly eliminated.

15. The fuel tank is shock-proof.

Main configuration instructions:

1. The conveyor belt sends the dumped cardboard to the stacked paper feeding section. After passing through the stacked paper feeding section, the cardboard is automatically arranged in a fish scale shape, and is sent to the paper feeding section of the all-in-one pasting and nailing machine through the horizontal conveying section belt.

2. There are automatic aligning devices on both sides of the stacked conveying part, and the alignment device can be electrically adjusted (alignment stroke 100mm).

3. The front end of the horizontal conveyor belt is equipped with an automatic longitudinal paper tapping device, which adjusts the delivery speed according to the vehicle speed.

4. The whole machine can be moved longitudinally.

5. The horizontal conveyor belt transportation is automatically controlled by photoelectricity.

6. The power crawler logistics supporting the complete machine shall be supplied by the equipment factory.

7. Touch screen computer control.
